| EPDM SPONGE (Ethylene-Propylene Diene Monomer) |
|
|
■ Characteristics
- Excellent for ozone resistance, abrasive resistance, ageing resistance, and tolerance to moisture
- Strong Chemical Resistance (acid, alkali, acetone, alcohol and hydraulic oil)
- High electric insulation
- Low Compression Ratio
- Extremely High Tearing Strength
- High Insulation
- Low Oil Resistance of EPDM is supplemented for N/EPDM. |
■ Applications

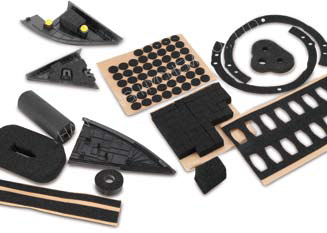

Automobile RR, Gasket for Lamp, Window Sealing Agent, Interior Parts of Automobiles (Engine, Side mirrors, Sunroof, Trunk and Speaker).
Dust proof, Acoustic Material, Buffer Material, Support Bar, Wire, Cable, Dust proof for Vacumm Cleaner Motor, Buffer Material, Packing Material for Mecha connection of Sealing part for various machines, Dust proof elastic pad for railroad, High Quality Sheath, Buffer Material for Shoes, the Handle of Tennis racket, Mouse Pad. |
■ Specification
| Model No. |
Cell |
Color |
Denst.
(kg/m3) |
Spring
Hardness
("C"type) |
Size
(mm) |
Flammability |
Temp.
Range
(℃) |
Remarks |
| HEO-50-P |
Open-Cell |
Black
Beige
Gray |
55±5 |
- |
1000×2000×30
1000×1500×30 |
none |
-40 ~ 120 |
Non-
Reach |
| HEO-60-P |
65±5 |
| HEO-100-P |
105±5 |
| HEO-50-NP |
55±5 |
Reach |
| HEO-60-NP |
65±5 |
| HEO-100-NP |
105±5 |
| HEO-50-P-FR |
55±5 |
Acceptable
MS300-08 |
Non-
Reach |
| HEO-60-P-FR |
65±5 |
| HEO-100-P-FR |
105±5 |
| HEO-50-NP-FR |
55±5 |
Reach |
| HEO-60-NP-FR |
65±5 |
| HEO-100-NP-FR |
105±5 |
| HEH-100 |
Close-Cell |
105±5 |
15±3 |
1000×2000×36
1000×1500×36 |
none |
- |
| HEH-120 |
125±5 |
18±3 |
| HEH-140 |
145±5 |
20±3 |
| HEH-200 |
Black |
205±5 |
25±3 |
1100×1300×27 |
Custom-
Made |
| HEO-PUFF |
Open-Cell |
Red |
- |
- |
- |
- |

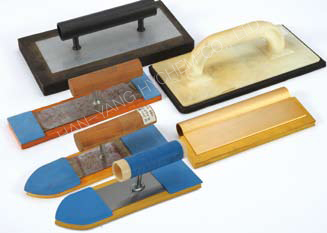

| HEH-TROWEL |
Close-Cell |
Orange |
|
|
|
|
| HEO-Series : Black, Ivory |
|
|
|
|
|
|
|
|
|
|
 |
